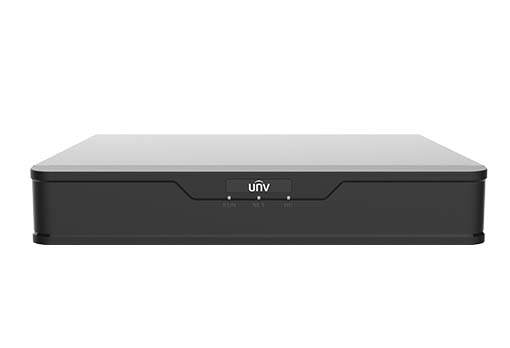

UNV-XVR 301 04G3-2M Digital Video Recorder
Model: XVR301-04G3
Type: XVR
Video/Audio
Analog Video Input: 4-ch, BNC
Video Live: 5MP Lite/4MP Lite/1080P/720P/CIF
Video Recording: 1080P
IP Video Input: 2-ch(only IP up to 6ch), each channel up to 4MP
Video Inputs: AHD/TVI/CVI/CVBS
Frame Rate: Main Stream: 5MP Lite@12fps / 4MP Lite@15fps / 1080P@15fps / 720P@25fps - Sub stream: D1@12fps / D1@15fps / D1@15fps / D1@25fps
VGA/HDMI Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Decoding Capability: Analog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x 1080P@15 - IP: 1 x 4MP@30, 2 x 1080P@30
Audio Output: 1-ch, RCA
Two-way Audio: 1-ch, RCA
Network
Incoming Bandwidth: 16Mbps (Up to 24Mbps after all analog channel conversion)
Outgoing Bandwidth: 48Mbps
Remote Users: 128
Protocols: TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
Interface
HDD Type: 1x SATA Interface
Capacity: Up to 8TB for each HDD (The Maximum HDD Capacity Varies With Environment Temperature)
Network Interface: 1x RJ45 10M/100M Self-Adaptive Ethernet Interface
USB Interface: Rear Panel: 2 x USB2.0
General
General Alarm: Motion Detection
Operating Condition: Temperature: -10°C ~ + 55°C ( +14°F ~ +131°F ) - Humidity: ≤ 90% RH(non-condensing)
Power Supply: 12V DC
Power Consumption: ≤ 8 W( without HDD )
Dimensions: 260 × 226 × 47mm
