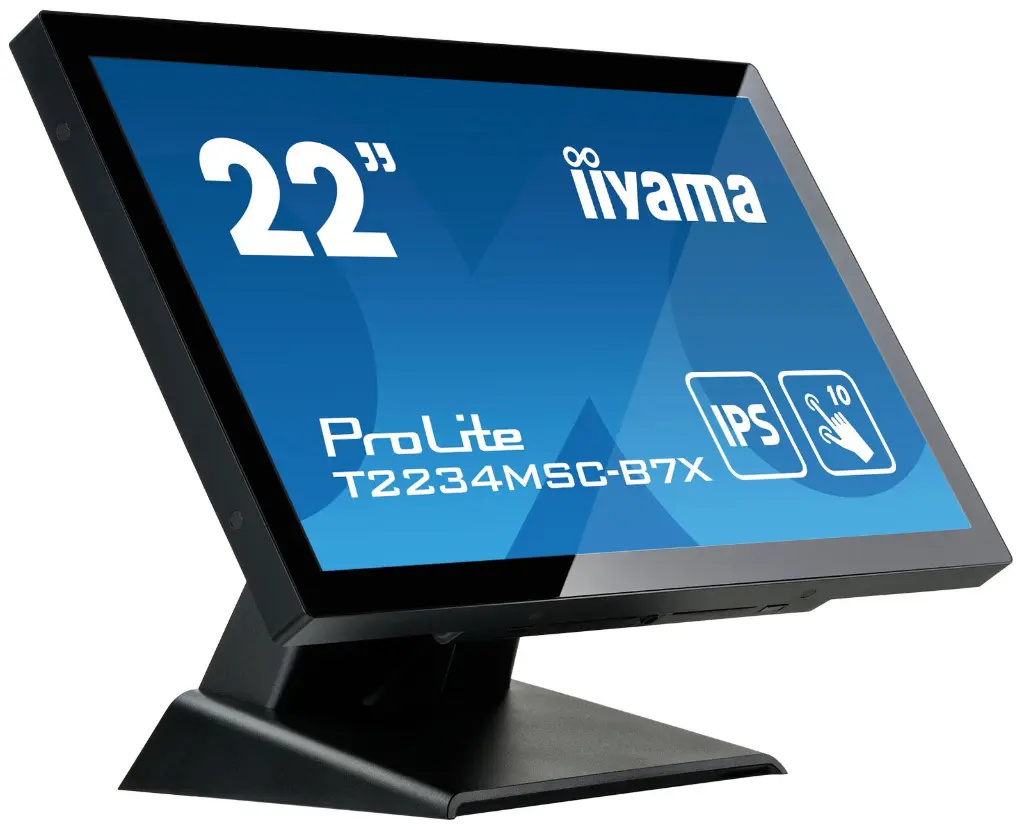

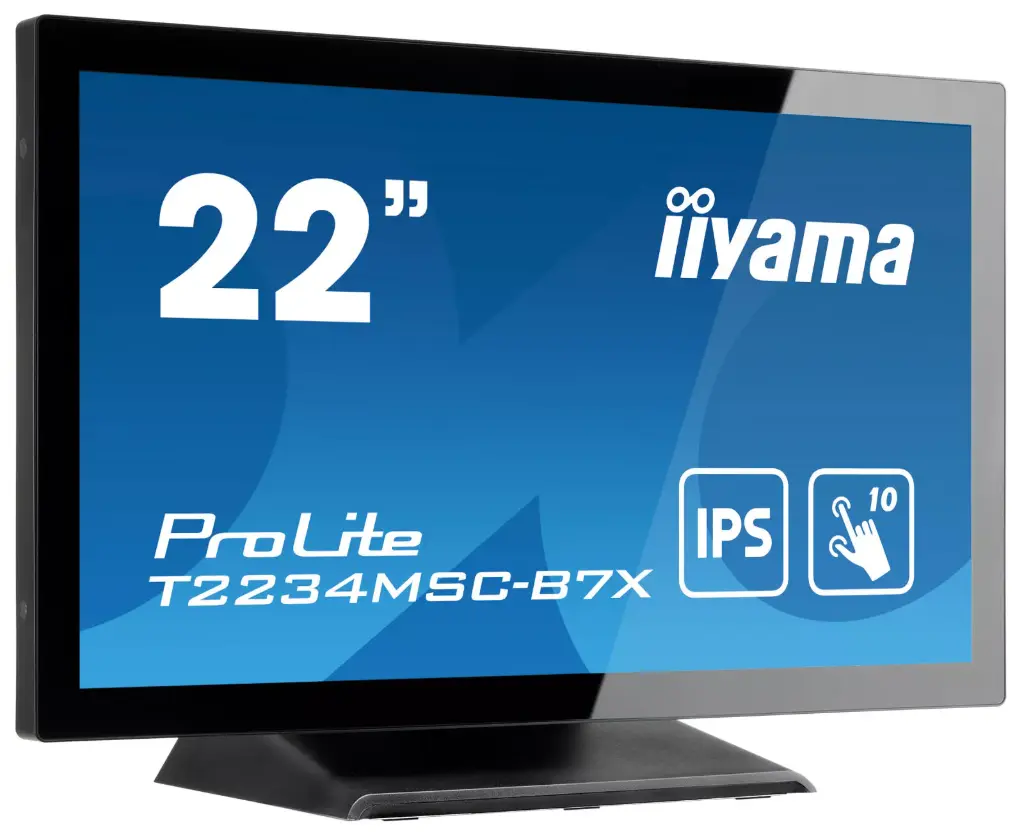

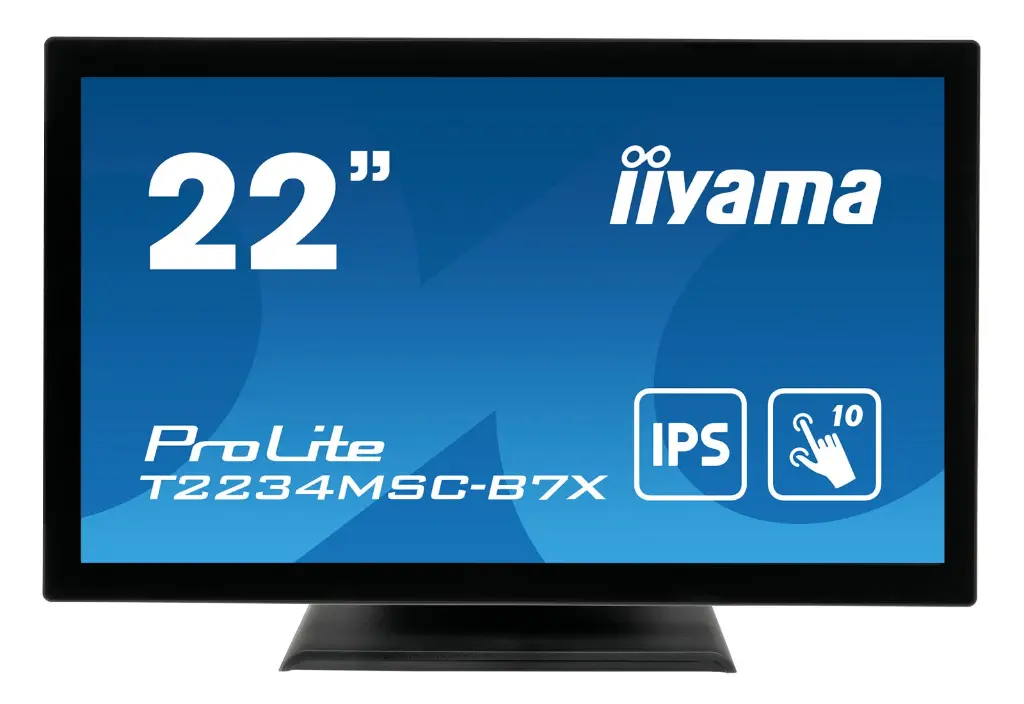

IIYAMA T2234MSC-B7X ProLite 21.5" 22" Full HD 10pt touchscreen IPS Monitor Glass

PROLITE T2234MSC-B7X

22" Full HD 10pt touchscreen featuring IPS panel technology and touch through glass function

The ProLite T2234MC-B7X uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail.

DISPLAY CHARACTERISTICS

Diagonal               21.5", 54.6cm

Panel     IPS LED

Native resolution             1920 x 1080 (2.1 megapixel Full HD)

Aspect ratio        16:9

Panel brightness              350 cd/m²

Brightness           305 cd/m² with touch

Light transmittance         87%

Static contrast   1 000:1 with touch

Response time (GTG)    8ms

Viewing zone     horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support  16.7mln

Horizontal Sync 30.0 - 84.0kHz

Viewable area W x H      476.0 x 267.7mm

Pixel pitch           0.247mm

Bezel colour and finish   black, matte

TOUCH

Touch technology            projective capacitive

Touch points      10 (HID, only with supported OS)

Touch method  stylus, finger, glove (latex)

Touch interface                USB

Supported operating systems    All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

Palm rejection   yes

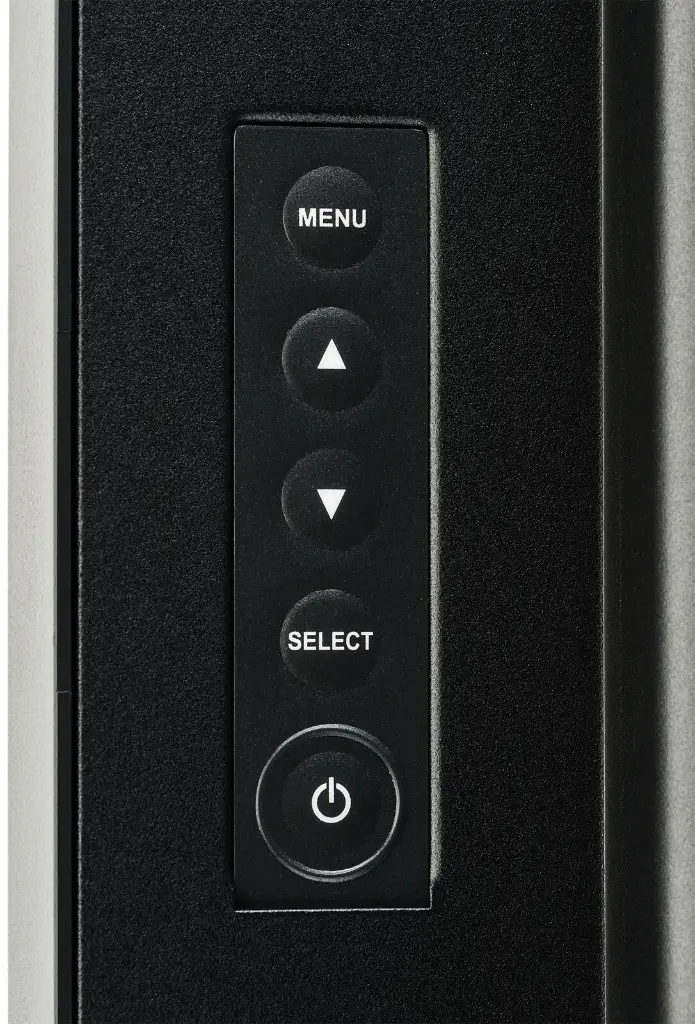

INTERFACES / CONNECTORS / CONTROLS

Analog signal input          VGA x1

Digital signal input            HDMI x1

DisplayPort x1

Audio output     Speakers 2 x 3W

HDCP     yes
